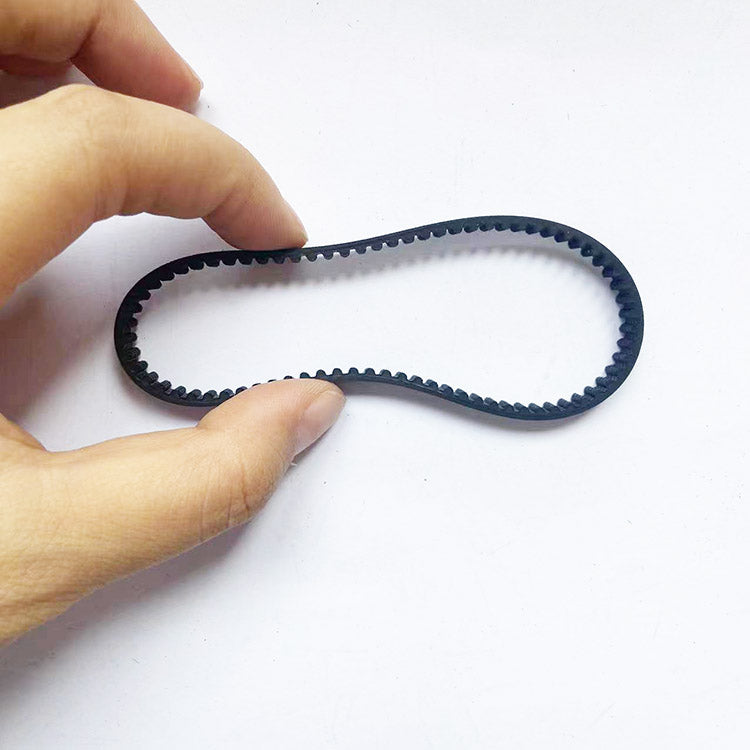

HTD 3M-111/117/120/123/126/129/132/135 Close Loop Synchronous Timing Belt
HTD 3M-111/117/120/123/126/129/132/135 Close Loop Synchronous Timing Belt
Regular price
$1.00
Regular price
$1.00
Sale price
$1.00
Unit price
/
per

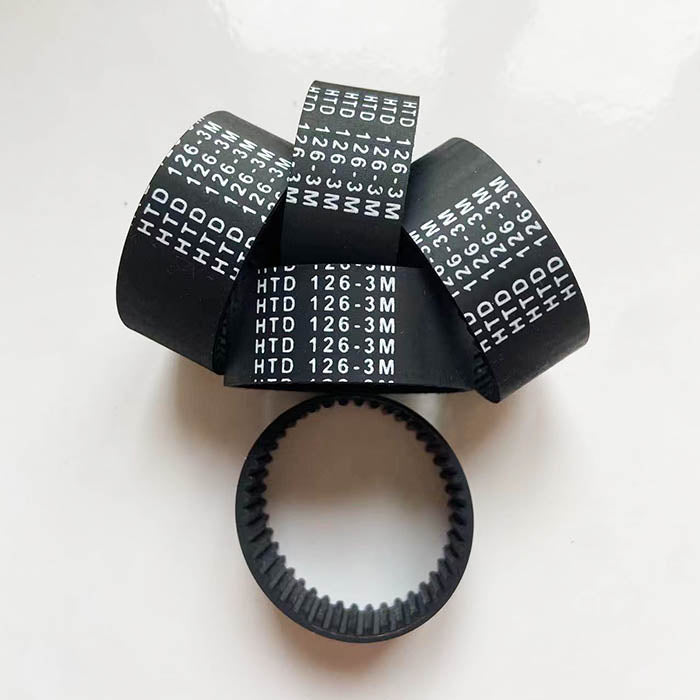

HTD 3M Synchronous Belt:
111-3M 37 Teeth,117-3M 39 Teeth,
120-3M 40 Teeth,123-3M 41 Teeth,
126-3M 42 Teeth,129-3M 43 Teeth,
132-3M 44 Teeth,135-3M 45 Teeth.
06/9/10/12/15/18/20/25mm width or contact us for your request width.
Teeth Type :Arc HTD Teeth
Type: Closed-loop HTD 3M Timing Belt
Material: Rubber with fiber glass core

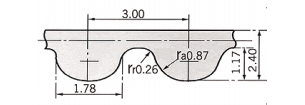

Belt Height: 2.44mm(0.095″)
Tooth Height: 1.17mm(0.046″)
Pitch: 3mm(0.118”) pitch
Share
SKU:HTD 111-3M 37 Teeth / 6mm
