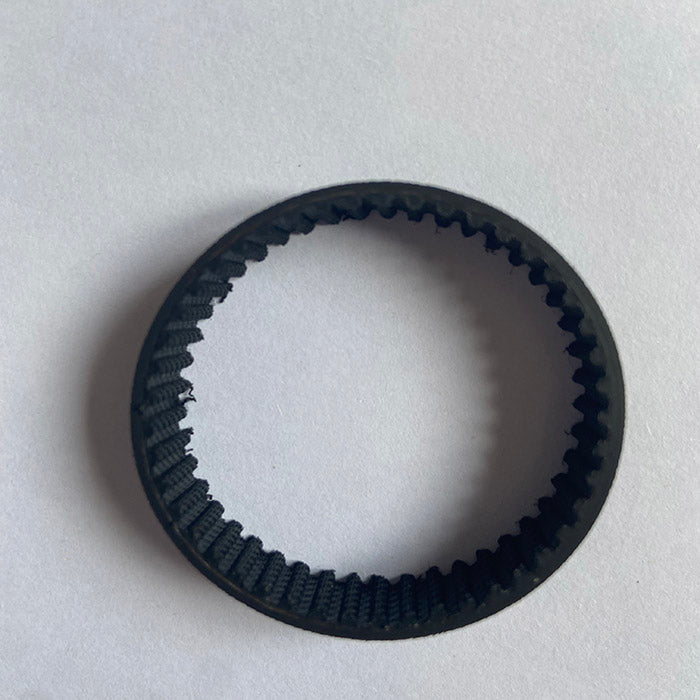

HTD 3M-138/141/144/147/150/153/156/159 Close Loop Synchronous Timing Belt
HTD 3M-138/141/144/147/150/153/156/159 Close Loop Synchronous Timing Belt
Regular price
$1.00
Regular price
$1.00
Sale price
$1.00
Unit price
/
per
HTD 3M Synchronous Belt:
HTD 138-3M 46 Teeth, HTD 141-3M 47 Teeth, HTD 144-3M 48 Teeth,
HTD 147-3M 49 Teeth, HTD 150-3M 50 Teeth, HTD 153-3M 51 Teeth,
HTD 156-3M 52 Teeth, HTD 159-3M 53 Teeth
06/9/10/12/15/18/20/25mm width or contact us for your request width.
Type: Closed-loop HTD 3M Timing Belt
Material: Rubber with fiber glass core

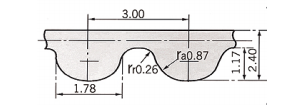

Pitch: 3mm(0.118”) Pitch
Belt Height:2.44mm(0.095″)
Tooth Height:1.17mm(0.046″)
Share
SKU:HTD 138-3M 46 Teeth / 6mm
